| Model | Caliber (mm) | Flow
(m 3 /h) | Head (m) | Power
(kW) | Voltage
(V) | Material |
| Inlet | Outlet |
| 14CQB-5 | 14 | 10 | 1.2 | 5 | 0.18 | 220/380 | 304
316
316L
S.S |
| 16CQB-8 | 16 | 12 | 1.8 | 8 | 0.18 | 220/380 |
| 20CQB-12 | 20 | 12 | 3 | 12 | 0.37 | 220/380 |
| 25CQB-15 | 25 | 20 | 5.4 | 15 | 1.1 | 380 |
| 32CQB-15 | 32 | 25 | 6.5 | 15 | 1.1 | 380 |
| 32CQB-25 | 32 | 25 | 4.8 | 25 | 1.1 | 380 |
| 40CQB-20 | 40 | 32 | 1 | 20 | 2.2 | 380 |
| 40CQB-32 | 40 | 32 | 11.5 | 32 | 4 | 380 |
| 50CQB-25 | 50 | 40 | 14.4 | 25 | 4 | 380 |
| 50CQB-32 | 50 | 40 | 13.2 | 32 | 4 | 380 |
| 50CQB-50 | 50 | 32 | 7.8 | 50 | 5.5 | 380 |
| 65CQB-25 | 65 | 50 | 16.8 | 25 | 5.5 | 380 |
| 65CQB-32 | 65 | 50 | 25 | 32 | 5.5/7.5 | 380 |
| 80CQB-32 | 80 | 65 | 50 | 32 | 11 | 380 |
| 80CQB-50 | 80 | 65 | 50 | 50 | 15 | 380 |
| 100CQB-35 | 100 | 80 | 60 | 35 | 15 | 380 |
| 100CQB-50 | 100 | 80 | 60 | 50 | 18.5 | 380
|

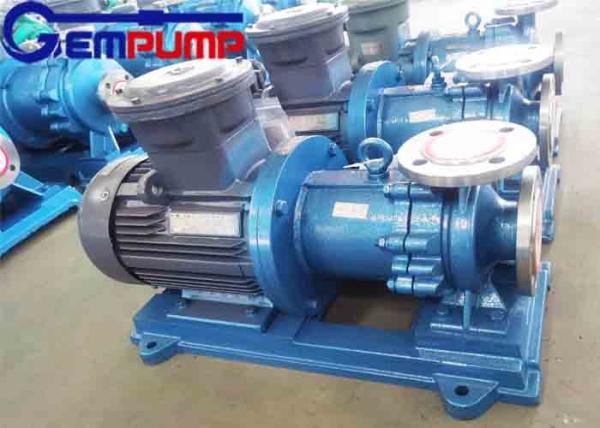

Horizontal Non-metallic Centrifugal Chemical Magnetic Drive Pump
Design feature
Leak-proof design,No shaft seal.
Utilize magnetic coupling indirect driving, which free you from leak problem and will not contaminate the site.
Because the pump's liquid carrying part is made of fluoroplastic alloy, it can be continually carry acid, base, or strong oxidizer at any concentration without any damage.
Operating principe
In the driving device the initiative magnet junction box is directly installed onto the motor shaft. The pump chamber is totally sealed,
and is propelled to rotate by the magnetic impeller on the magnetic coupling indirect driving pump shaft, its structure tight,safe and energy-saving.
Strong and sturdy pump housing
Though the liquid-touching part is made of fluoroplastics, the pump enclosure is made of metal, so the pump can sustain the pipe's weight and mechanical shock.
FAQ
Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 5 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 2 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:Gempump has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
